- 15 Amp, 4600 RPM motor with 12 in. Cross Cut Capacity
- Includes: 10 in. 40-Tooth Carbide Tipped Blade and Accessories
- LED Cutline Indicator provide improved cut accuracy
RYOBI TSS103 15 Amp 10 in. Corded Sliding Compound Miter Saw with LED Cutline Indicator
RYOBI introduces the 15 Amp 10 in. Sliding Compound Miter Saw. This saw features a 15 Amp, 4,600 RPM motor and has a 12 in. cross cut capacity. The LED Cutline Indicator and work-light illuminates material to help improve accuracy of the cut and visibility. The extended miter range from 47 degree left and right provides versatility for all DIY and professional projects by accommodating a wide variety of cuts. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 15 Amp 10 in. Sliding Compound Miter Saw includes an LED Cutline Indicator, a 40-tooth carbide-tipped blade, table extensions, a work clamp, a blade wrench, a dust bag, and an operator’s manual.
- Heavy duty 15 Amp motor to easily cut through larger material
- Sliding head provides maximum capacity for up to 12 in. cross cut
- Miter stops located at the most common crown molding angles 0 degree , 15 degree , 22.5 degree , 31.6 degree , and 45 degree left and right for quick cut settings
- LED Cutline Indicator and work-light projects cut line and illuminates material to improve accuracy of the cut and visibility

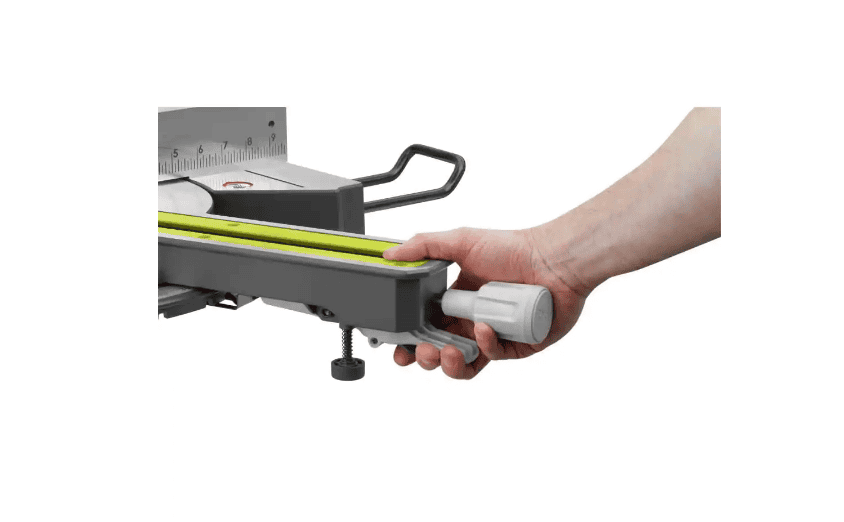

- Miter Detent Override: Quick action lever bypasses miter detent index points with one simple motion
- Machined cast-in miter scale for accurate table alignment
- Electric brake stops the blade in seconds
- Spindle lock for easy single wrench blade changes
- Extended miter range from 47 degree left and right to accommodate a wide variety of cuts
- Fixed Dust Port maintains the ideal position to optimize dust collection efficiencies for both plunge and sliding cuts
- 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
- Horizontal D handle for improved comfort
- 3-year manufacturer’s warranty
- Includes: (1) TSS103T Miter Saw with LED and 40-tooth carbide-tipped blade, table extensions, work clamp, blade wrench, dust bag, and operator’s manual
- California residentssee Prop 65 WARNINGS
Dimensions
| Arbor Size (in.) | 5/8 in | Blade Diameter (in.) | 10 in |
|---|---|---|---|
| Product Depth (in.) | 36.19 in | Product Height (in.) | 16.92 in |
| Product Width (in.) | 22.82 in | Work Table Height From Floor (in.) | 36.19 in |
| Work Table Length (in.) | 18 in | Work Table Width (in.) | 10 in |
Details
| Amperage (amps) | 15 A | Bench & Stationary Tool Type | Slide Miter Saw |
|---|---|---|---|
| Bevel Type | Single Bevel | Color Family | Green |
| Condition | New | Construction Material | Acrylonitrile Butadiene Styrene (ABS) |
| Cord Length (ft.) | 6 ft | Cordless/Corded | Corded |
| Cuts Through | Wood | Dust Collection Method | 1.5 in. Dust Port |
| Included Accessories | Allen Key/Wrench, Blade(s), Clamp | Maximum Bevel Cut Angle – Left (degrees) | 45 ° |
| Maximum Bevel Cut Angle – Right (degrees) | 0 ° | Maximum Crosscut Capacity at 45 Degrees (L/R) | 2 in x 8 in |
| Maximum Crosscut Capacity at 90 Degrees | 2 in x 12 in | Maximum Cutting Thickness (in.) | 3.5 in |
| Maximum Miter Cut Angle – Left (degrees) | 45 ° | Maximum Miter Cut Angle – Right (degrees) | 45 ° |
| Maximum Speed (RPM) | 4600 RPM | Miter Saw Type | Sliding Compound |
| Portability | Bench | Power Tool Features | Positive Stops |
| Product Weight (lb.) | 35.84 lb | Tools Product Type | Power Tool |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | 3-Year Manufacturer Warranty |
|---|
